A normal ECG shows: - Regular sinus rhythm - Appropriate rate, axis, intervals, voltages, and morphology - No pathological Q waves, ST/T changes, conduction defects, hypertrophy, or arrhythmia Normal ranges are for resting adults (≥16 y); variations exist in children, athletes, pregnancy, ethnicity, body habitus.

Systematic Interpretation Checklist

Rate: 60–100 bpm
Rhythm: Sinus (P before every QRS, consistent PR, upright P in II)
Axis: –30° to +90° (normal); physiological left axis –30° to –90° common
Intervals: PR 120–200 ms, QRS ≤110 ms (≤120 ms acceptable), QTc ≤440 ms (men), ≤460 ms (women)
P waves: Upright I/II/aVF, ≤2.5 mm amplitude, ≤120 ms duration
QRS voltage & morphology: Normal progression (small R V1 → large R V5/V6), no pathological Q waves
ST segment: Isoelectric or minimal elevation/depression (<1 mm)
T waves: Concordant with QRS, upright I/II/V3–V6, inverted aVR
U waves: Absent or small (<1 mm) in V2–V3

Detailed Normal Values & Features

Parameter	Normal Range (Adults)	Notes / Variations
Rate	60–100 bpm	Sinus bradycardia <60 (common in athletes); tachycardia >100
Rhythm	Sinus rhythm	P wave before QRS, PR constant, P positive in II
P wave	Duration ≤120 ms Amplitude ≤2.5 mm (limb leads)	Upright I, II, aVF; biphasic V1 (positive then negative); no notching
PR interval	120–200 ms	Shorter in young/athletes; longer in elderly (up to 220 ms still normal)
QRS duration	≤110 ms (≤120 ms acceptable)	Narrow complex; no BBB, WPW (delta wave), or fascicular block
QRS axis	–30° to +90°	Left axis deviation –30° to –90° physiological (obesity, pregnancy, ascites)
QRS voltage	Limb: R ≤20 mm, S ≤15 mm Precordial: R V5/V6 ≤27 mm, S V1/V2 ≤30 mm	No low voltage (<5 mm limb leads) or high voltage (LVH criteria)
R-wave progression	Small R V1 → transition V3–V4 → tall R V5/V6	Poor progression can be normal in obesity/COPD
ST segment	Isoelectric (±0.5 mm)	Early repolarisation: concave upward elevation (1–3 mm) in V2–V5 common in young males
T wave	Upright I, II, V3–V6; inverted aVR	Concordant with QRS; amplitude <5 mm limb, <10 mm precordial; no deep inversion
QTc (Bazett)	≤440 ms men, ≤460 ms women	Upper limit ~450–470 ms; shorter in hypercalcaemia, longer in drugs/hypokalaemia
U wave	Absent or small (<1 mm) after T in V2–V3	Prominent U waves abnormal (hypokalaemia, drugs)

Normal Variants (Not Abnormal)

Early repolarisation: Concave ST elevation (1–4 mm) in V2–V5, notched/slurred J point, tall T waves – common in young, black males, athletes
Sinus arrhythmia: Rate variation with respiration (increases on inspiration) – normal in young/athletes
Persistent juvenile T-wave pattern: T inversion V1–V3 (sometimes V4) – normal in young adults, especially women
Wandering atrial pacemaker: Slight P-wave morphology change with rate variation – benign
Borderline axis: –30° to –45° or +90° to +110° – often normal

Common Pitfalls & When to Call Abnormal

Pathological Q waves: ≥0.04 s wide or ≥25% R-wave depth in ≥2 contiguous leads
ST elevation: ≥1 mm limb leads or ≥2 mm precordial (men <40 y), ≥1.5 mm women – consider STEMI/early repolarisation
ST depression: ≥0.5 mm horizontal/downsloping – ischaemia
Left axis deviation < –30° or right > +90° – consider conduction defect
Prolonged QTc >470–500 ms – risk of TdP
Low voltage + electrical alternans – pericardial effusion

Clinical Pearls (Exam/OSCE/MCQ)

Report systematically: "Rate, rhythm, axis, intervals, ST/T changes, voltage, progression"
Always compare to previous ECGs if available
Normal ECG does NOT exclude acute ischaemia (up to 20–30% NSTEMI have normal ECG)
Athletes often have sinus bradycardia, early repolarisation, high voltages – physiological
Ethnic variations: Higher voltage and early repolarisation more common in black individuals
Age: PR/QRS slightly longer in elderly; T inversion V1–V2 more common in women

Sources (2025–2026)

AHA/ACC/HRS: ECG Standardization & Interpretation (2009, reaffirmed 2025)
ESC Guidelines: Acute Coronary Syndromes (2023–2025)
Life in the Fast Lane ECG Library (updated 2025)
Marriott's Practical Electrocardiography (13th ed.)
UpToDate: ECG Interpretation (2026)

NORMAL

The content on this website is provided for educational and informational purposes only to support exam preparation (e.g., MLA, MRCP, USMLE) and learning. This is NOT medical advice, diagnosis, treatment, or professional guidance. It does not replace consultation with a qualified healthcare professional, official guidelines (e.g., NICE, GMC, BNF), or supervised clinical practice. Always verify information with current, authoritative sources. Makindo and its contributors accept no liability for any reliance on this content, including errors, omissions, or any resulting harm, loss, or consequences. By using this site, you agree to these terms.

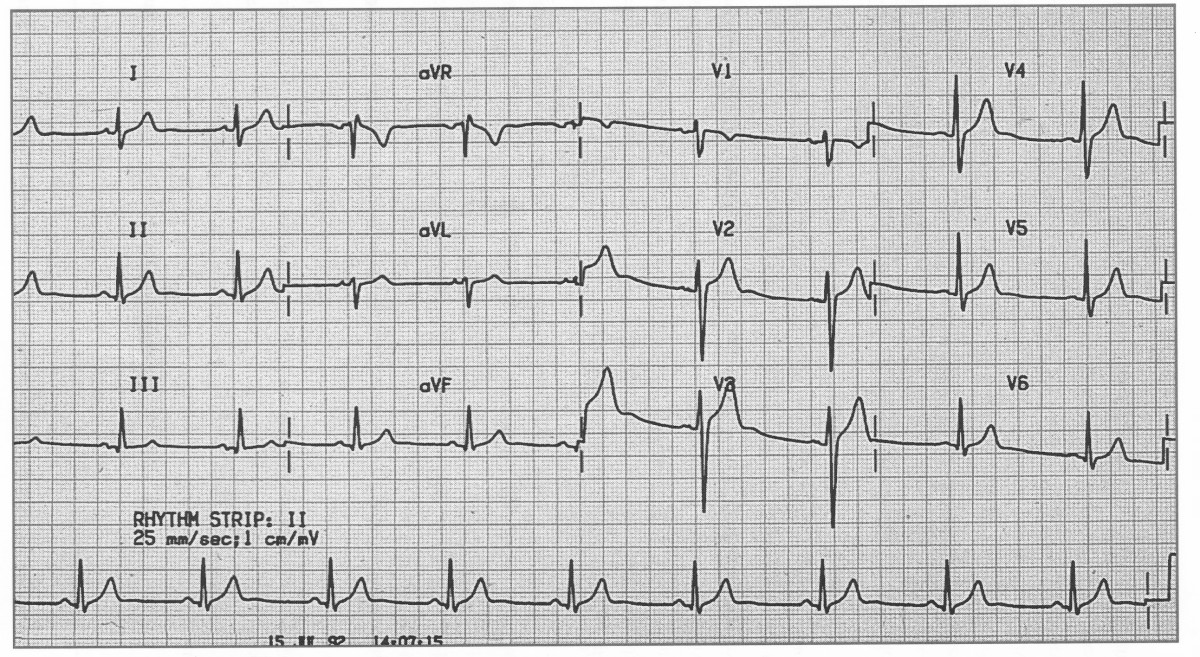

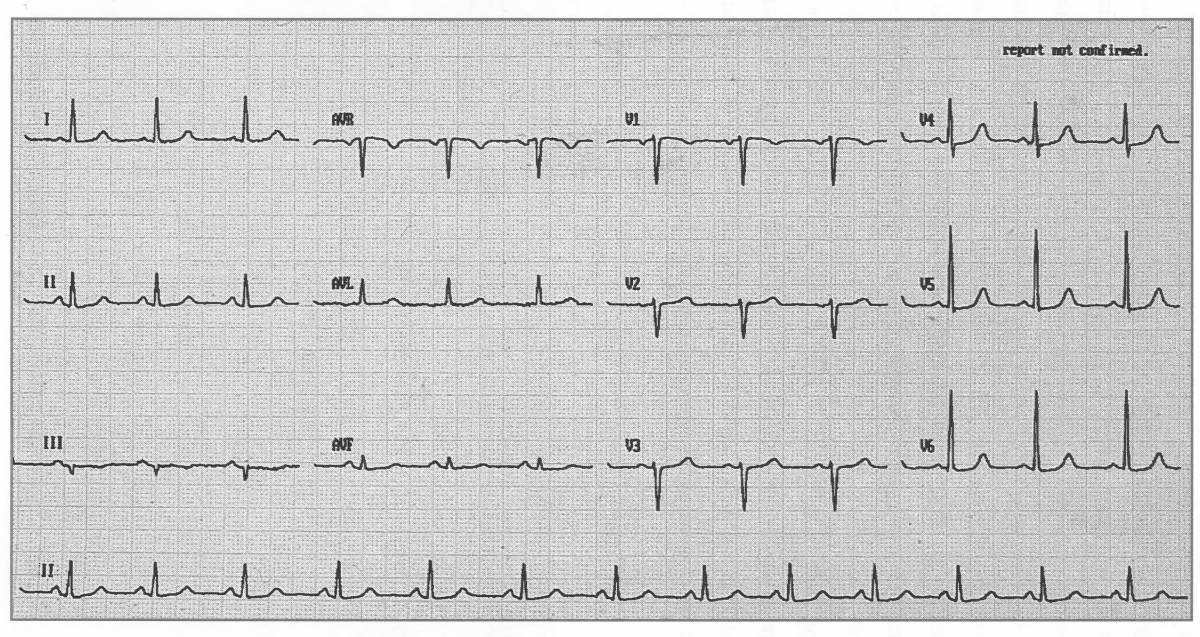

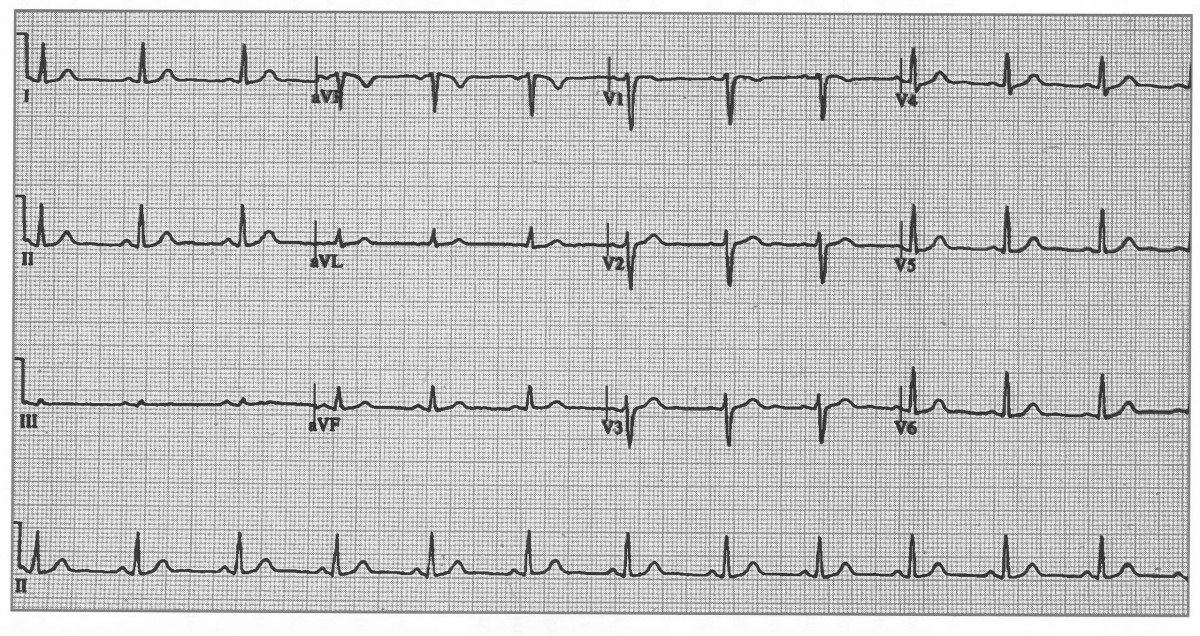

ECG - Normal 12 Lead
